Mini Converter SDI to HDMI 3G With Power Supply (WIISTAR)

Mini Converter SDI to HDMI 3G With Power Supply (WIISTAR)

he Wiistar Mini SDI to HDMI Converter (3G) is a compact and reliable solution for converting professional SDI signals into HDMI output. Designed for broadcasters, video production, and AV professionals, this converter ensures seamless transmission of HD-SDI and 3G-SDI signals to HDMI displays with zero signal loss.

With support for resolutions up to 1080p@60Hz, it allows you to display SDI video on standard HDMI monitors, projectors, or TVs. The converter also supports SDI loop output for extended workflow flexibility. Built with a high bit rate of 2.97 Gbit/s, it guarantees smooth, stable, and high-quality video transmission for professional use.

Perfect for studios, field production, live events, or video monitoring setups, this mini SDI to HDMI converter is lightweight, portable, and easy to integrate into any workflow.

Technical Specifications:

Brand: Wiistar
Model: Mini SDI to HDMI Converter

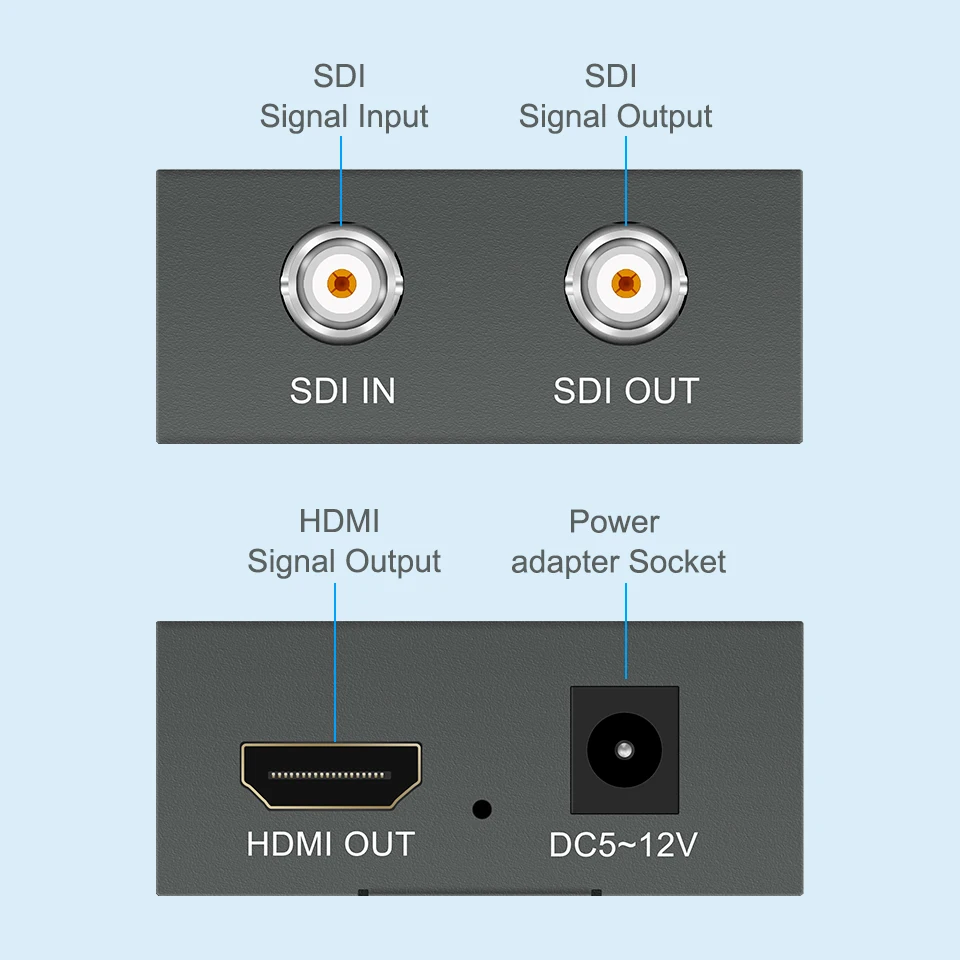

Input:
1 × BNC SDI Input (SD-SDI / HD-SDI / 3G-SDI, auto-selected)

Output:

1 × HDMI Output
1 × BNC SDI Loop Output

Supported Video Formats:

Input SDI Format: 480i/p, 576i/p, 720p@60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz
Output HDMI Format: 480i/p, 576i/p, 720p@60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz
Compliant Standards: SMPTE-259 / 274 / 292 / 296 / 372 / 424 / 425

Audio:

Input: SDI embedded audio, HDMI embedded audio, 24-bit / 48KHz, up to 8 channels
Output: HDMI v1.3a, 30/36 bits per pixel, RGB or YUV

Performance:
Max Resolution: 1080p @ 60Hz
Transmission Rate: 2.97 Gbit/s

Power(Voltage): 5V ~ 12V DC
Power Adapter Included

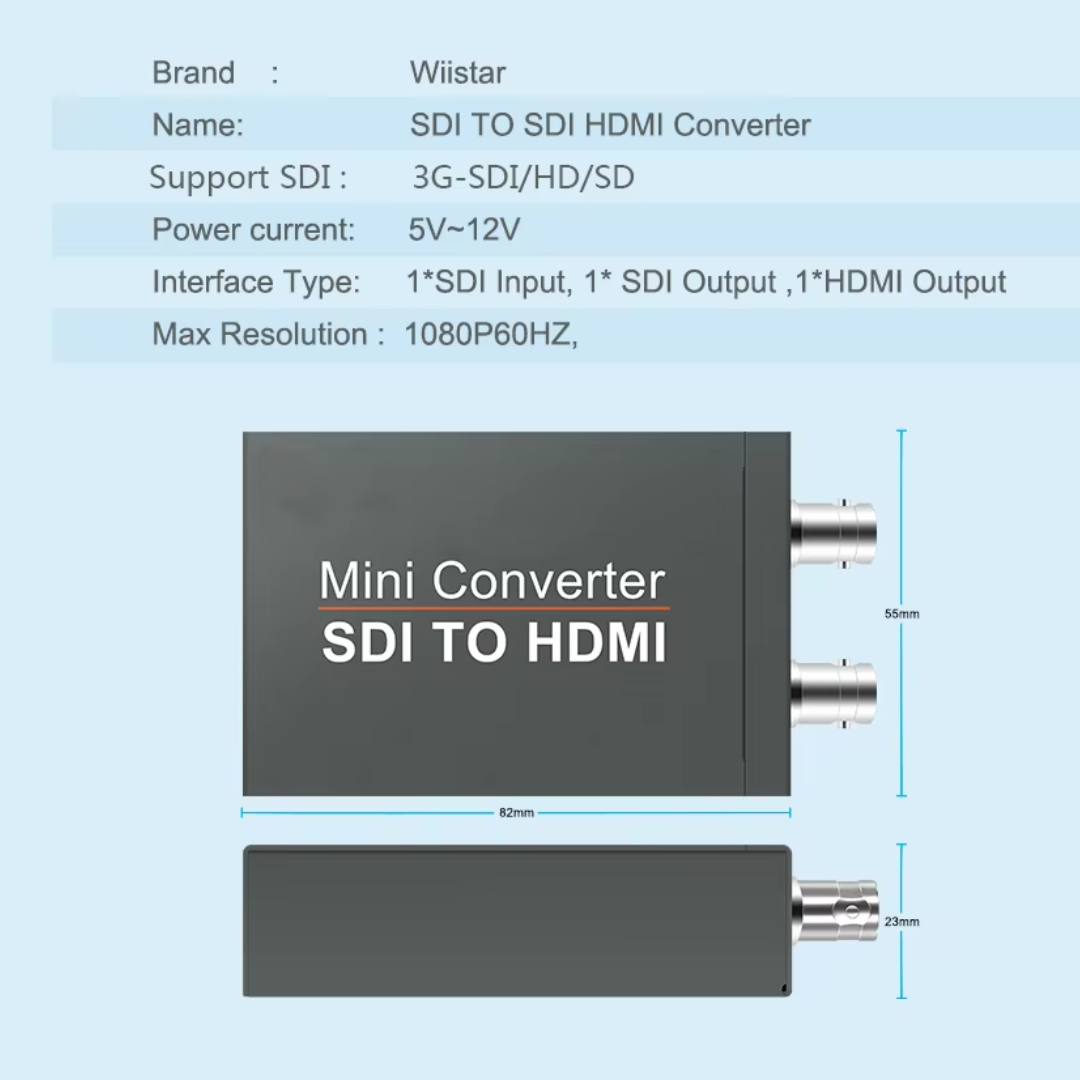

Dimensions:
Length: 82mm
Width: 55mm
Height: 23mm
